Description
- ICASA Type Approved
- Sale of this item subject to ICASA Licensing
- Radio Dealer and Amateur Radio operator prices on request
Description :

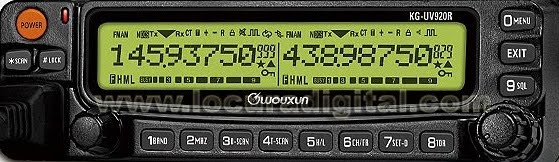

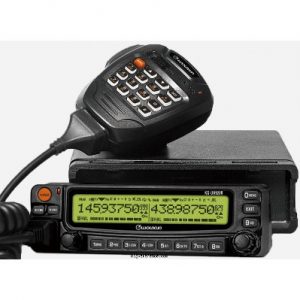

The KG-UV920P is a the Wouxun dual band rig, operating both 2 meters (VHF) and 70 cm (UHF)
- Duplex Cross-Band Repeat
- Twin Band Simultaneous Reception
- Dual-Track & Dual-Speaker
Key Features:
- DTMF-mic with speaker and volume control
- Detachable front panel
- Called ID
- Twin RX
- Remote Control
Note: Sale of this item subject to ICASA Licensing
| General | ||
|
Frequency Range
|
Frequency Range Suitable for any Region of any Region of any Country | |
|
Step Frequency
|
5KHz/6.25KHz/10KHz/12.5KHz/20KHz/25KHz/30KHz/50KHz/100KHz |
|
|
Memory Channels
|
999 | |
|
Work Mode
|
F2D/F3E | |
|
Operating Temperature
|
-20℃～+60℃ | |
|
Power Requirement
|
13.8VDC±15%(Negative Grounded) | |
|
Antenna Impedance
|
50Ω | |
|
Weight
|
1437.8g（Including Microhone ） | |
|
Dimensions
|
140x44x207(mm) | |
| Receiver | Wide Bandwidth | Narrow Bandwidth |
|
Adjacent Channel Selectivity
|
≥70dB | ≥60dB |
|
Intermodulation
|
≥65dB | ≥60dB |
|
Spurious Response
|
≥70dB | ≥70dB |
|
Audio Response
|
+1～-3dB(0.3～3KHz) | +1～-3dB(0.3～2.55KHz) |
|
Signal to Noise Ratio
|
≥45dB | ≥40dB |
|
Audio Distortion
|
≤5% | |
|
Audio Power
|
Transceiver≤3W Hand Microphone≤1W |
|
|
Sensitivity
|
UHF/VHF：0.25µV | |
| Transmitter | Wide Bandwidth | Narrow Bandwidth |
|
Output Power
|
50W/25W/10W/5W(VHF) | 40W/25W/10W/5W(UHF) |
|
Type of Modulation
|
16K F3E | 11K F3E |
|
Adjacent Channel Power
|
≥70dB | ≥60dB |
|
Signal to Noise Ratio
|
≥40dB | ≥36dB |
|
Spurious
|
≥60dB | ≥60dB |
|
Audio Response
|
+1～-3dB(0.3～3KHz) | +1～-3dB(0.3～2.55KHz) |
|
Max.Frequency Deviation
|
±5KHz | ±2.5KHz |
|
Frequency Stability
|
±2.5ppm | |
|
Audio Distortion
|
≤5% | |
|
Output Power
|
50W/20W/10W/5W/(VHF) | |
| 40W/20W/10W/5W(UHF) | ||
